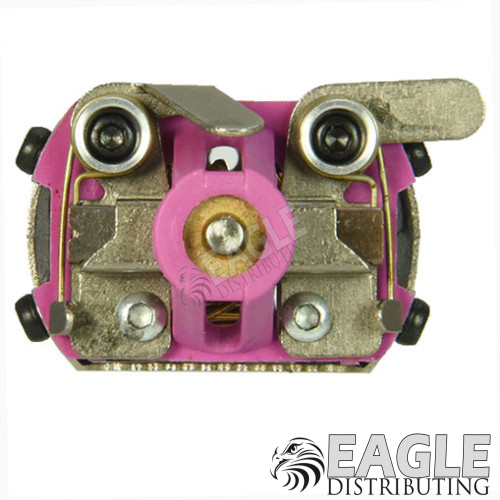

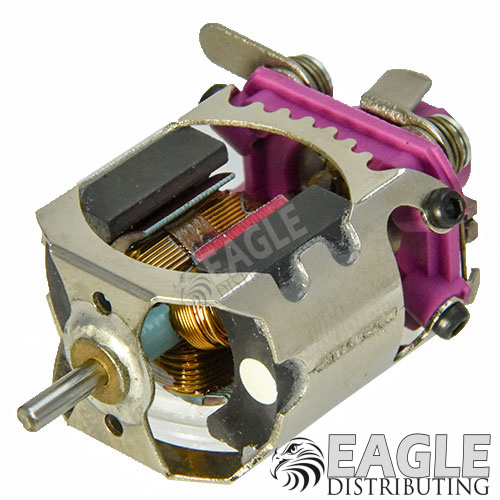

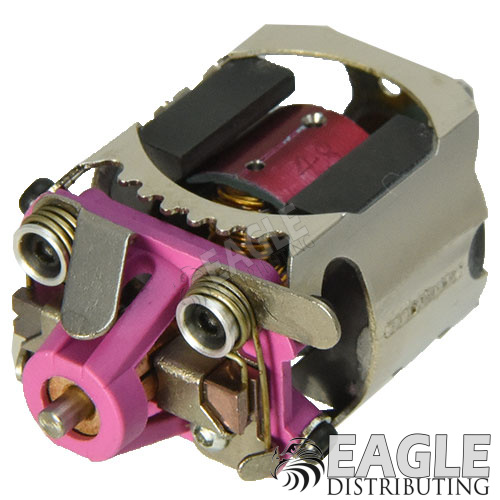

Cahoza C-can motor, assembled using "UL" type C-can #252, Cahoza Tornado 2 magnets, Cahoza plastic endbell, Cahoza hardware #266, Cahoza aluminium spring cups, Cahoza self tapping screws, Koford flanged oilites, Koford armature M468 -- Box TriStar G12 dia .518", perfectly balanced with shortened shaft and cut down commutator, Koford brushes M486, Cahoza springs #257, magnets are glued in using Cahoza single component epoxy, inside diameter of magnets is honed to .529" (13.45mm), weight of complete motor is only 19.2 grams
Motor
Motor Size C
Packaging
Unit Count 1
Unit of Measure EACH

G12 Production Motor, UL Can, T2 Magnets

  • Brand: Cahoza
  • Categories: Group 12
  • Item #: CAH232
  • Available: IN STOCK
  • Unit: 1 EACH
  • $108.70

Tags: #232
