LapMaster is the premier slot car racing, lap-counting and race management system for commercial slot car tracks / raceways.

It runs on modern PC computers with Windows/XP, Vista, Win/7, Win/8.x or Win/10/11 via Serial port or via USB with the included USB adapter.

  • Runs on Modern 32/64 Bit PC computer hardware running Windows XP, Vista, Windows 7, 8, 10 and 11.
  • Communicates via Serial Port or over USB with included USB Adapter
  • Can publish live timing and full race results to your website via FTP
  • Time Seller mode for doing Rentals (no more giant mechanical timers required)

Includes: Timing Hardware and Software, USB adapter. Requires a US Plug to be installed on the included power strip cord.

Technical and commercial information:

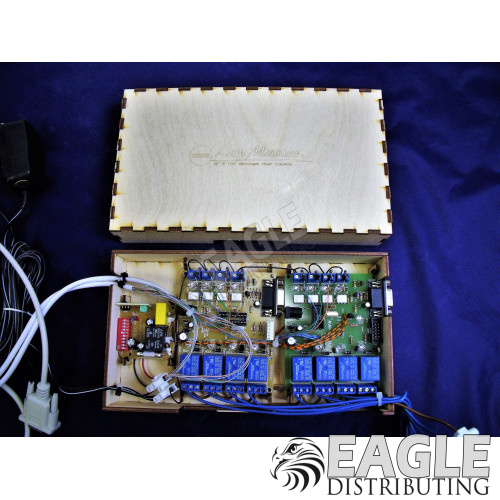

The program works in association with the LapTimer-II hardware.
Dedicated microprocessor assures correct and precise timing with 1/1000 seconds resolution.

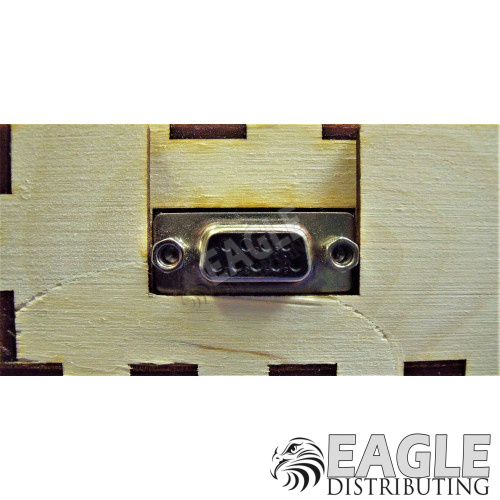

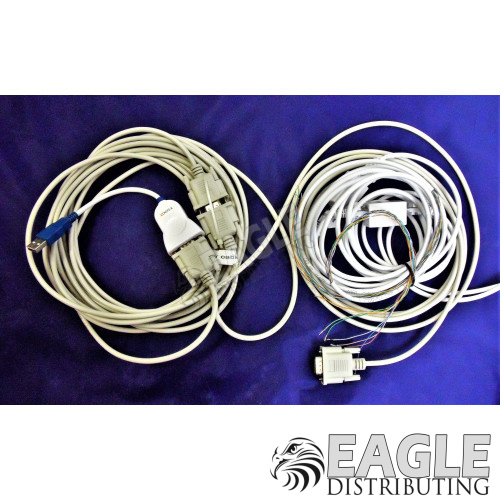

Serial interface (RS232) can be converted to USB using the supplied converter cable.
 Available in 4 lane version by special order, 8 lane version provided.

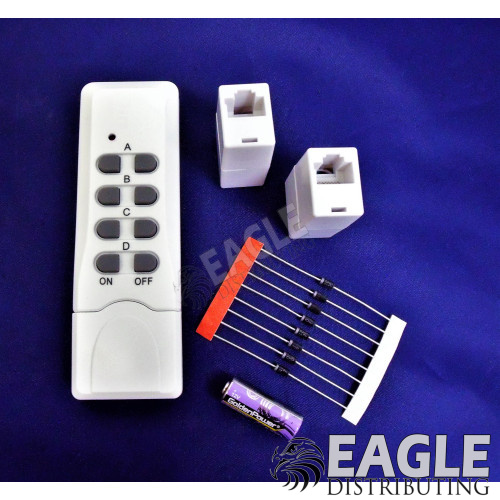

 Wireless remote control included to initiate / resume track calls.

Requirements:
            Windows XP, Vista, Win/7, Win/8.x or Win/10.
            Speakers for automated announcements.
            Color printer is recommended for printing results, statistics and winners certificate.
            Dual screen is recommended for large events.
            Internet connection optional.

Available in the USA and Worldwide from Eagle Distributing at NET Pricing, no additional discounts or shipping incentives are offered for this item

Switching from SRT?

            If you have an existing track using SRT, Lapmaster integrates very easily with the SRT relay board (track hardware).

Online Manual

            The Lampaster user manual is available online here

            The simplest and most common installation is using a "Deadstrip" for lap counting. A hardware connection diagram can be found here

Troubleshooting guide:

            If you have difficulty with the operation of your system, here is a collection of problems and possible solutions. If you need further assistance feel free to call your Eagle account manager for assistance.


Problem
Possible Solution(s)
System counts laps, but not reliably
Check the voltage on the deadstrip, it should be 5-7 volts, and polarity should be the opposite of the lane power. For most tracks this will be ground (-) on the left, and positive voltage (+) on the right braid when checked on the deadstrip (in the direction the car travels).
Time Seller not working or "Time Seller" option is not listed under Race Setup -> Race Type

Make sure under Race Setup -> Track Setup the option "Control power to each lane individual" is checked

Packaging
Unit Count 1
Unit of Measure Each

Lapmaster 8 Lane Track Timing System

  • $422.00

Tags: Lapmaster 8 Lane
