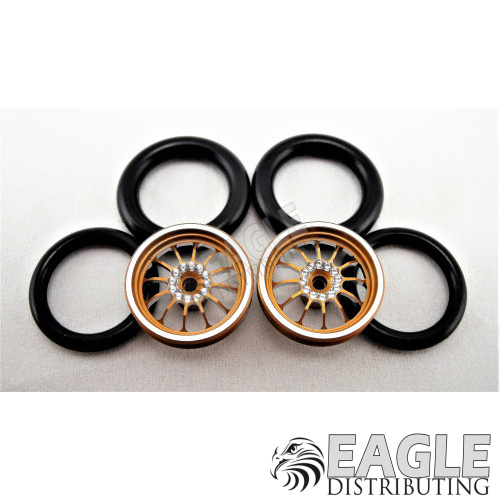

These Drag Front Wheels by Pro Track are CNC Machined for accuracy. The wheels are approximately 3/4" in diameter and included are two sizes of hard rubber O-ring fronts tires giving you more options to achieve the desired look.

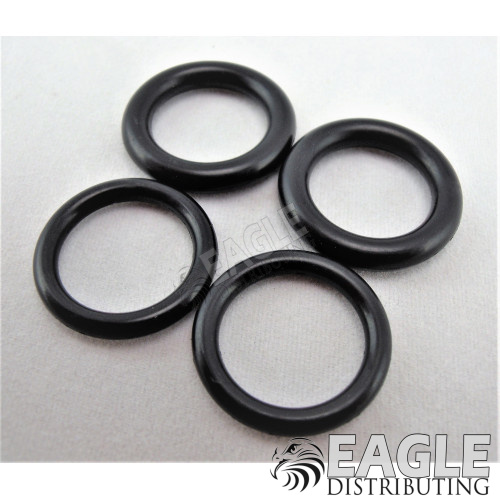

The wheels without rubber are .675" in diameter, with the small (0.100") rubber the finished diameter is .788", with the larger (0.138") rubber the finished dimension is .878". A popular trick is to true the rubber O-Ring down to create a flat spot for a more scale looking front wheel.

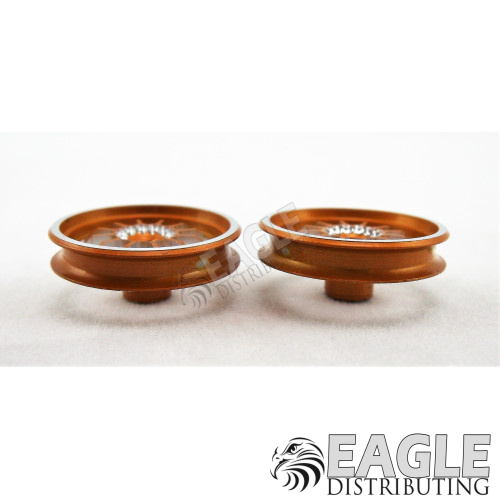

The wheel width is .120" with an extended boss on the rear of the hub to minimize wobble for a total width of .250 (1/4"). The Axle bore is 1/16" and can be fitted on piano wire or brass pin tubing for the axle.

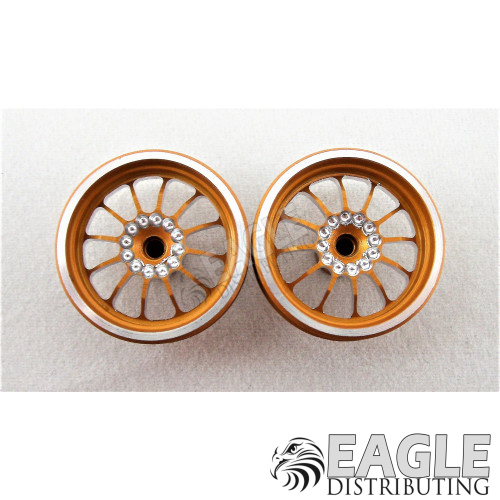

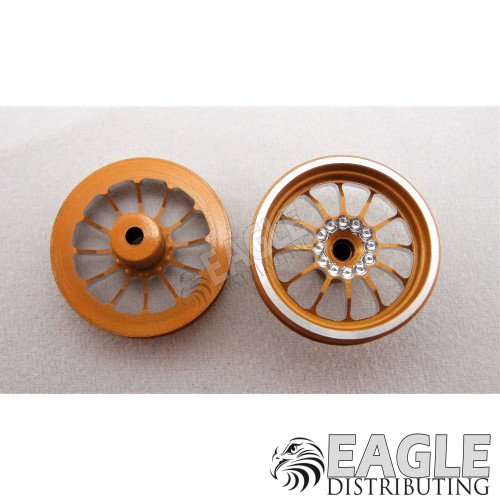

The wheels are CNC Machined from aluminum on both sides of the wheel for a 3D appearance, then anodized with a gold finish and machined again to add highlights and details to the wheels. May have some fine lines left from the machining process.
Many sizes of matching rear wheels and wheelie wheels are available.
|Axle Bore||.062 (1/16in.)|
|Size||.750 (19mm / 3/4in.)|
|Unit of Measure||PAIR|
1/16 x 3/4 3D Gold Turbine O-ring Drag Fronts
- Brand: ProTrack Corporation
- Categories: Drag Fronts
- Item #: PRO411E3DG
- Available: Out of Stock, Backorder OK
- Unit: 1 PAIR
